SMD P6

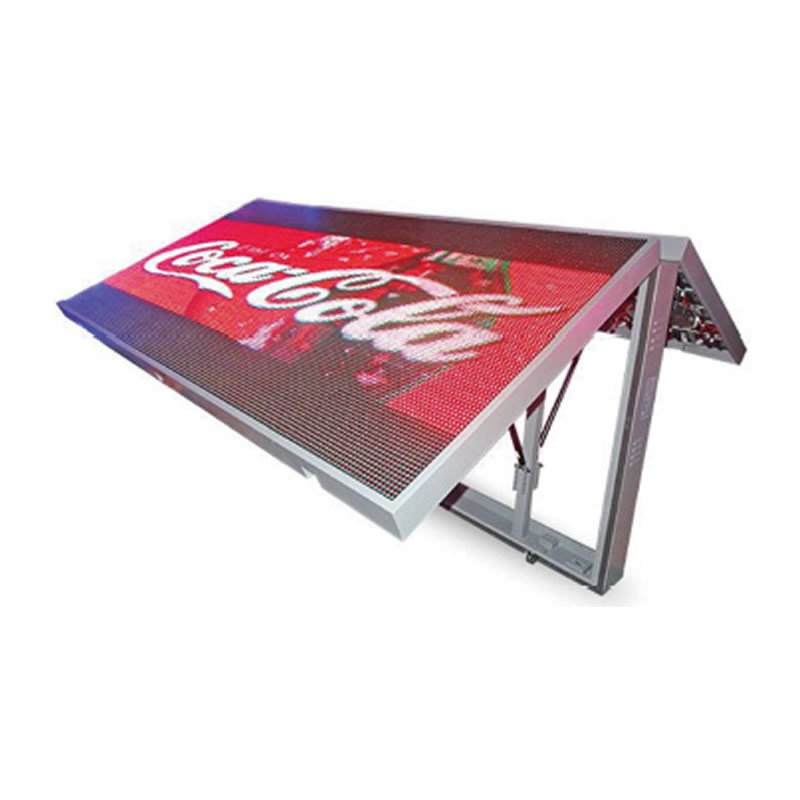

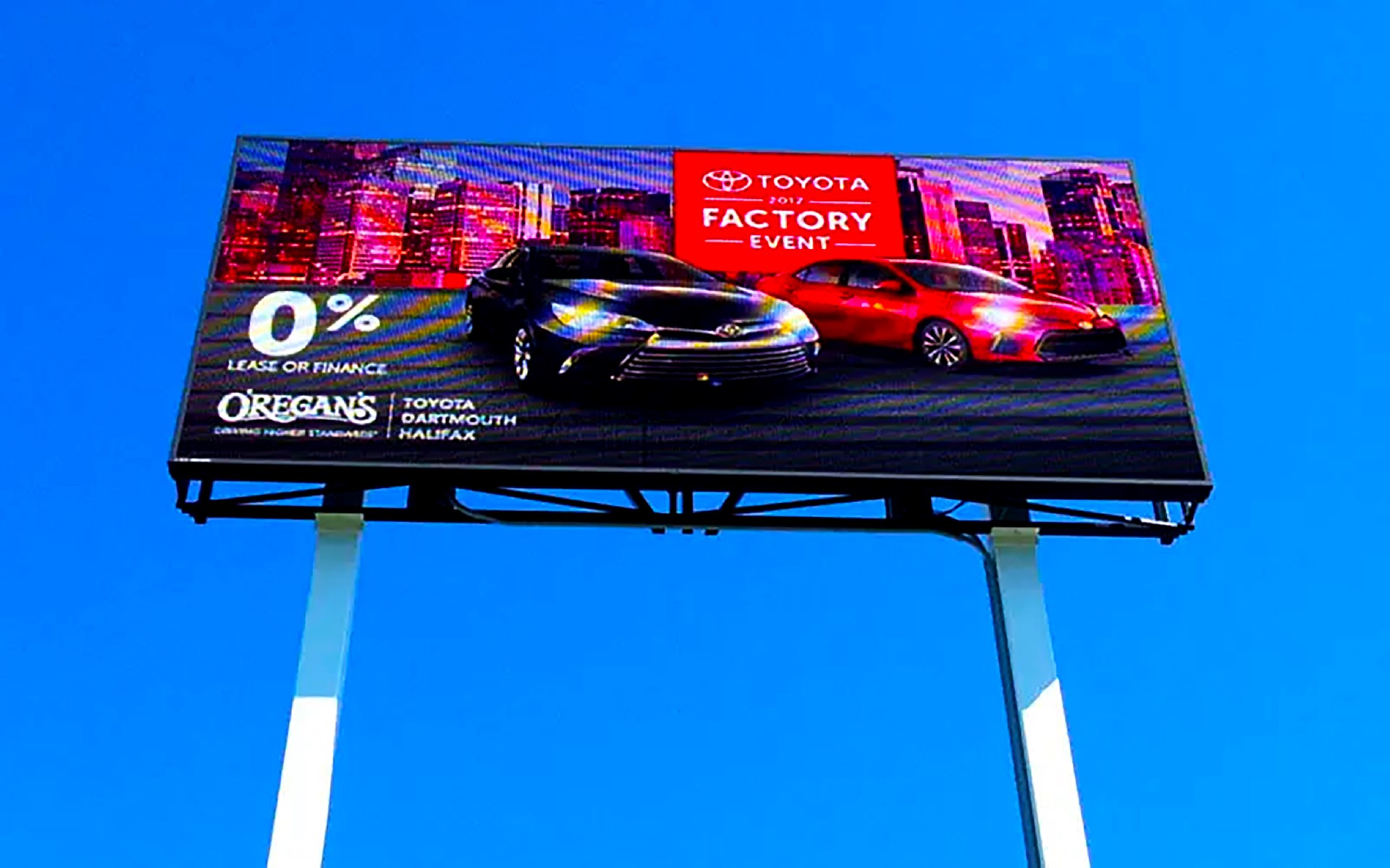

Outdoor Fixed LED Display:P3/P4/P5/P6/P6.67/P8/P10

Brand Name

T.I LED COMPANY

Place of Original

Guangzhou City, Guangdong Province, China

Model

SMD P6

After-Sales Service and Warranty:

T.I has a professional and efficient after-sales service team, whose members have rich industry experience and technical knowledge, and can provide customers with timely and accurate technical support and solutions.

Personalized pre-sales and after-sales support

We Keep Buyer Information Completely Confidential!

INQUIRY NOW

Detail

Technical Param eter
Outdoor Fixed LED Display	P3	P4	P5	P6	P6.67	P8	P10
Module size(mm)	192*192	256*128	320*60	192*192	320*160	256* 128	320*160
Module resolution(pixel)	64*64	64*32	64*32	32*32	48*32	32* 16	32*16
Pixel density(dots/m2)	111,11 1	625,00	40,000	27,777	22,478	15,625	10,000
Scan	l / 16S	l /8S	l /8S	l /8S	l /8S	l /4S	l /2S
Pixel configuration	SMD1820	SMD1921	SMD2727	SMD2727	SMD3535	SMD3535	SMD3535
LED lamp	Nation star/Kinglight/Epi star
IC	MBI5020/5 124/5 l 53/ICN2037/2038S/2153
Refresh(HZ/s)	960/ 1920/3840
brigh tness (cd/m2)	5500	7500	5500	5500	5500	6000	6000
Max power consu mption(W/m2)	800	800	800	800	800	800	800
Best view distance	3-20m	4-30m	5-50m	6-50m	6-50m	8- 100m	10-150m

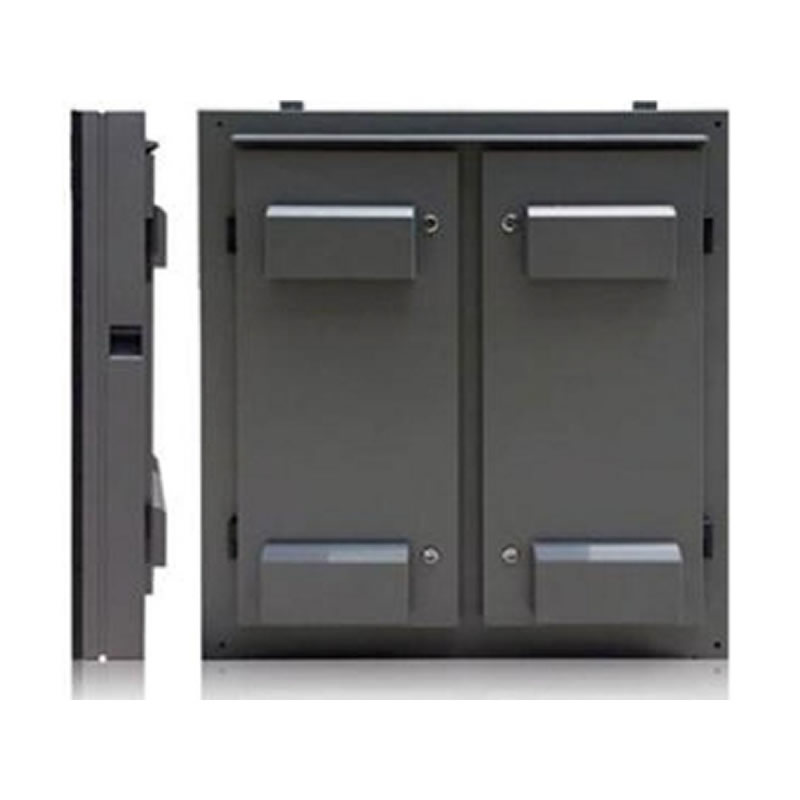

Cabinet size(mm)	576*576	768*768	960*960	960*960	960*960	1024* 1024	960*960
Cabinet material	Iron cabinet

Viewin g angle	140°W ，140°H
IP grade	IP43
Life span	1 00,000 hours
Working Voltage	AC 220 V/ 110 V± 10%
Defect Rate	≤0.0001

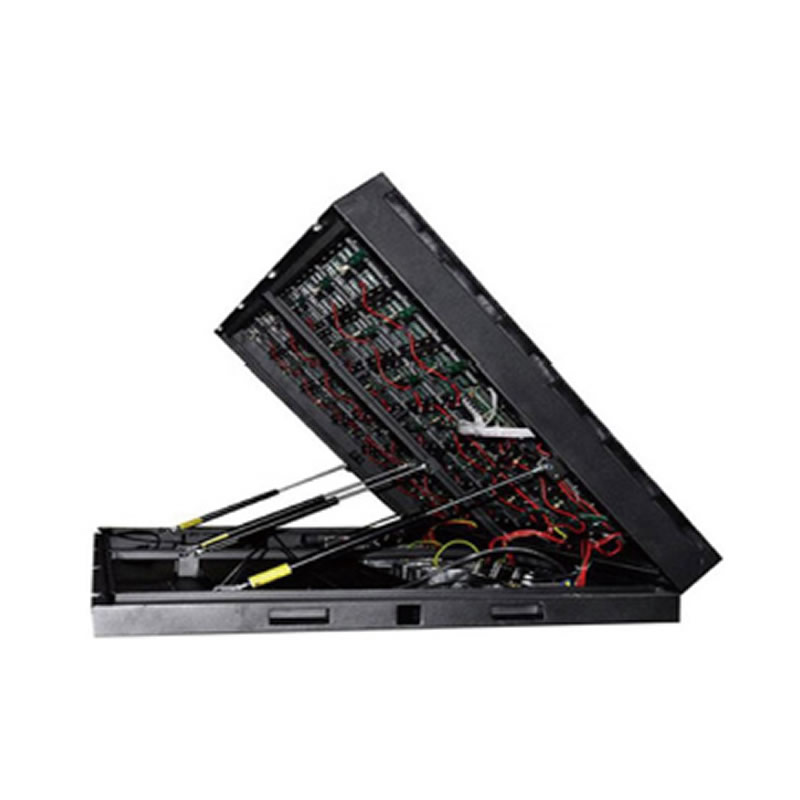

Maintenance mode	front I back
Avera ge power consumption	300 W/m2
Max power consumption	600 W/m2
Operating Temperatu re	30°C~+60°C ; 10% ~95%RH
Control system	Novastar/Colorlight Huidu/Linsn/Sheen Color
Signal Input	HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
Control Dista nce	120 m (no repeati ng) ; Optical fiber transmissi on: 500m- 10km
Systems Operating Platform	WINDOWS (WIN2000 / WINXP/ WIN7/ WIN8/ WIN10)
