What’s the Difference Between SMD and DIP LED Displays?

In the LED display industry, two major technologies dominate the market — SMD (Surface-Mounted Device) and DIP (Dual In-line Package).

Understanding their differences is essential when selecting the best LED display screen for your outdoor concerts, stage events, or advertising billboards.

Both have unique advantages in brightness, viewing angle, and durability, making them suitable for different applications.

1. What Is a DIP LED Display?

DIP LED displays are the traditional type of LED modules, using three separate Red, Green, and Blue diodes encased in epoxy resin. Each LED is mounted through

holes on the circuit board and soldered manually or semi-automatically.

Key Features:

High Brightness: DIP LEDs can reach up to 10,000 nits, making them perfect for outdoor LED screens exposed to direct sunlight.

Strong Durability: Their sealed design resists water, dust, and UV exposure, ideal for long-term outdoor use.

Stable Performance: DIP modules are less likely to fail under high temperatures, ensuring longevity in harsh environments.

Best Applications:

Outdoor billboards and stadium screens

Large concert LED walls

Roadside advertising displays

2. What Is an SMD LED Display?

SMD LED displays use a single LED package that combines all three RGB chips into one compact unit, soldered directly onto the PCB surface. This design allows

for smaller pixel pitches and superior color blending.

Key Features:

High Resolution: SMD technology enables fine pixel pitches like P2.6, P3.91, and P4.81, delivering smooth and detailed video playback.

Wider Viewing Angle: SMD LEDs offer up to 160° horizontal and vertical visibility, ensuring consistent color performance from any direction.

Lightweight and Sleek Design: SMD panels are thinner and easier to install, suitable for stage rental LED screens and indoor events.

Best Applications:

Indoor concerts and exhibitions

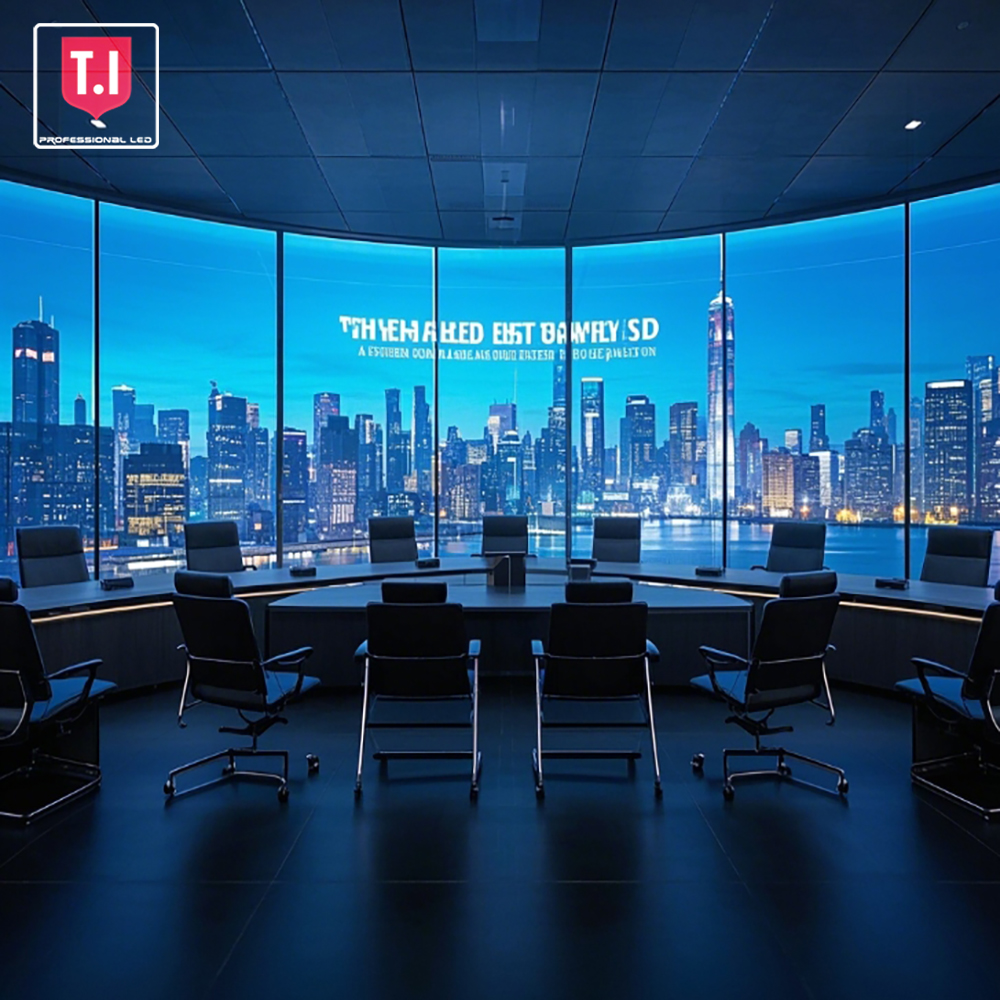

Corporate events and trade shows

Stage background LED screens

At T.I Pro Audio, we design and manufacture LED display systems that meet different environmental and performance needs:

For outdoor concerts and festivals, our P6.25 and P8 DIP LED panels ensure maximum brightness and visibility even under direct sunlight.

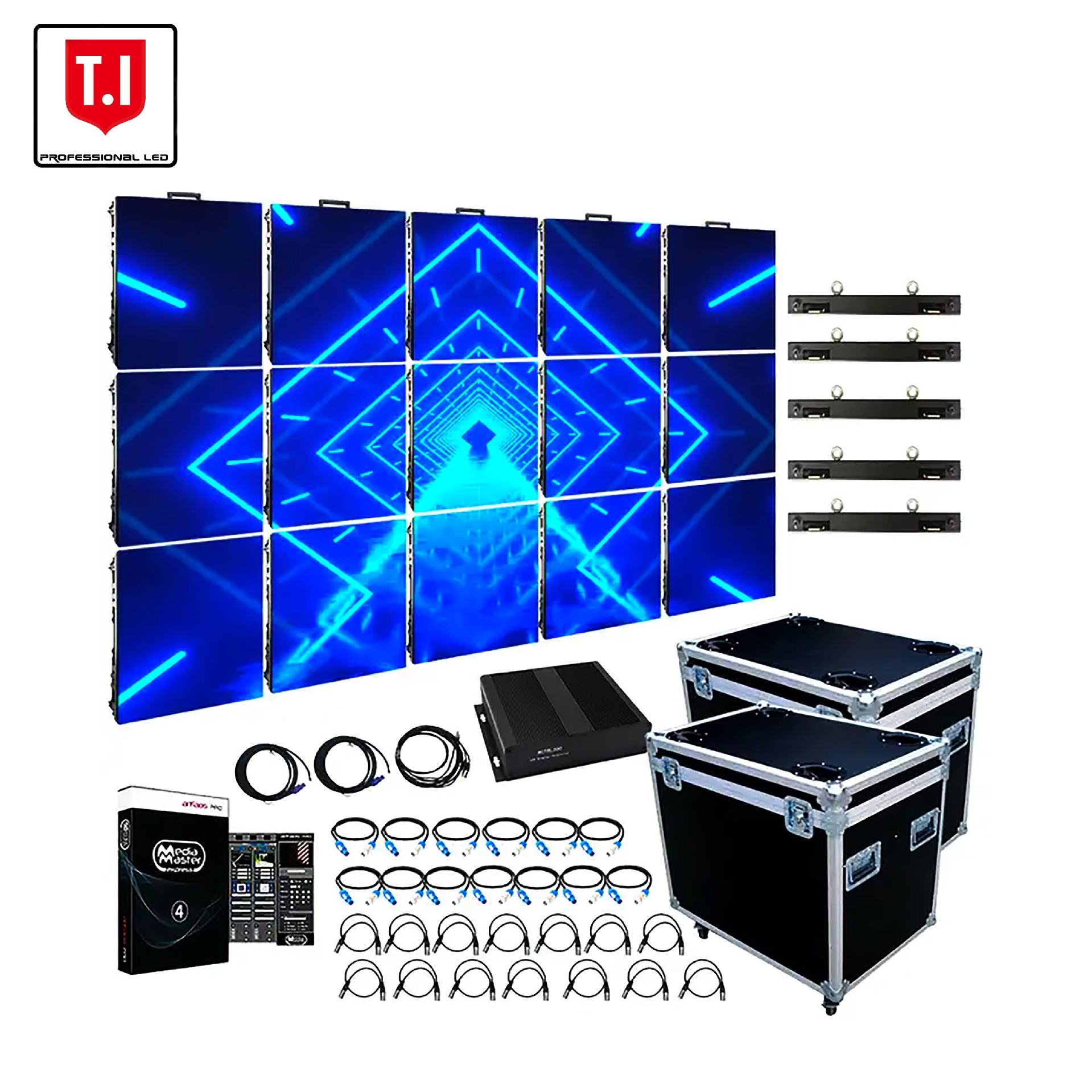

For indoor concerts, stage rental setups, and event halls, our P3.91 and P4.81 SMD LED screens deliver high-definition visuals with perfect color balance.

Our engineering team integrates LED, sound, and lighting systems to create complete stage solutions, supported by 15+ years of manufacturing experience

and global project deployment in over 100 countries.

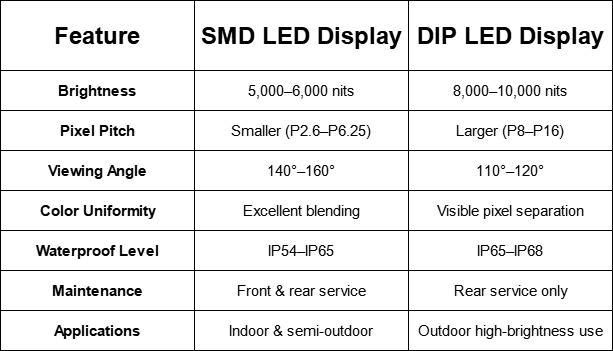

3.SMD vs. DIP: A Detailed Comparison

4. Why T.I Pro Audio LED Screens Use Both SMD and DIP Technologies

At T.I Pro Audio, we design and manufacture LED display systems that meet different environmental and performance needs:

For outdoor concerts and festivals, our P6.25 and P8 DIP LED panels ensure maximum brightness and visibility even under direct sunlight.

For indoor concerts, stage rental setups, and event halls, our P3.91 and P4.81 SMD LED screens deliver high-definition visuals with perfect color balance.

Our engineering team integrates LED, sound, and lighting systems to create complete stage solutions, supported by 15+ years of manufacturing experience

and global project deployment in over 100 countries.

5. Which LED Type Should You Choose?

Choose DIP LED screens if you prioritize outdoor durability, brightness, and long-distance visibility.

Choose SMD LED screens if you require high-definition visuals, lightweight design, and versatile installation options.

Ultimately, the best solution depends on your project environment, budget, and event type.
